TLP5212 Logic Output Gate Drive Optocoupler 25mA For Industrial

TLP5212(D4-TP,E Toshiba Logic Output Optocouplers GATE DRIVER COUPLER

Toshiba TLP5212 IGBT Gate Drive Photocoupler

Toshiba TLP5212 IGBT Gate Drive Photocoupler is a Smart Gate Driver (SGD) coupler with IGBT desaturation detection, isolated fault status feedback, soft gate turn-off, Active Miller Clamp, and under voltage lockout (UVLO). The device is designed to act as a general-purpose gate driver coupler to protect IGBTs from overcurrent generated in inverter applications. The TLP5212 is also ideal for a wide range of applications, from inverter circuits used in industrial equipment (such as general-purpose inverters and power conditioners in solar power systems) to UPS and residential equipment such as home battery storage systems.

The TLP5212 integrates two infrared light-emitting diodes (LEDs) and two high-gain and high-speed photodetector ICs. The device achieves high current, high-speed output control, and FAULT status feedback with electrical isolation between a primary and secondary side.

The Toshiba TLP5212 IGBT Gate Drive Photocoupler is offered in a 10.3mm x 10.0mm x 2.1mm SO16L package with a -40°C to +110°C operating temperature range.

FEATURES

±2.5A maximum peak output current
15V to 30V power supply voltage
6mA maximum threshold input current
5mA maximum supply current
250ns maximum propagation delay time
1.27μs typical DESAT leading edge blanking time

±25kV/μs minimum common-mode transient immunity
5000VRMS minimum isolation voltage
600mW output gate drive IC power dissipation
Active Miller clamp
Under voltage lockout (UVLO)
-40°C to +110°C operating temperature range
10.3mm x 10.0mm x 2.1mm, SO16L package

APPLICATIONS

IGBT gate drivers
MOSFET gate drivers
Industrial inverters
Photovoltaic (PV) power conditioning systems

Air conditioner inverters
Solar power systems
AC servos
UPS

TRUTH TABLE

Chart - Toshiba TLP5212 IGBT Gate Drive Photocoupler

RESOURCES

APPLICATION CIRCUIT (POSITIVE)

Application Circuit Diagram - Toshiba TLP5212 IGBT Gate Drive Photocoupler

APPLICATION CIRCUIT (NEGATIVE)

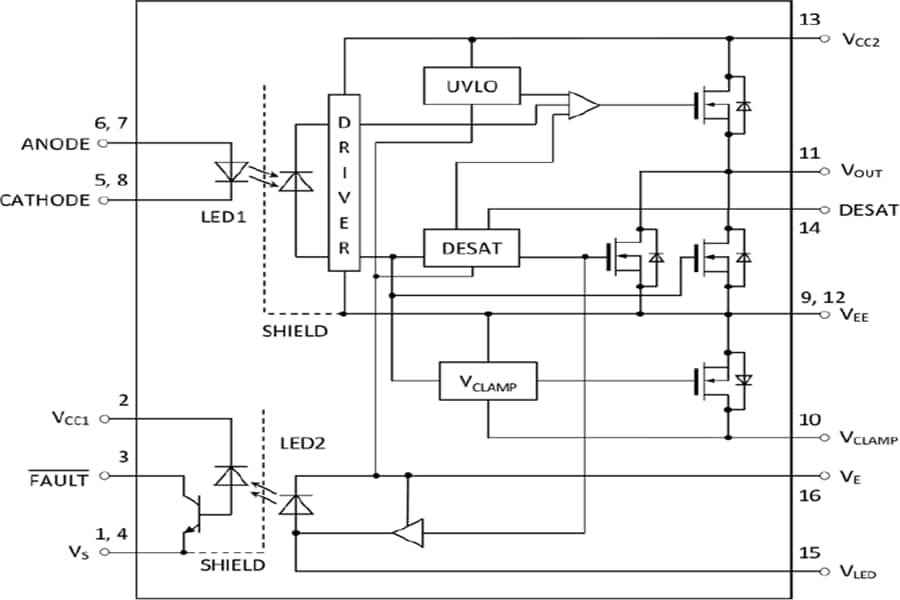

INTERNAL CIRCUIT

Block Diagram - Toshiba TLP5212 IGBT Gate Drive Photocoupler

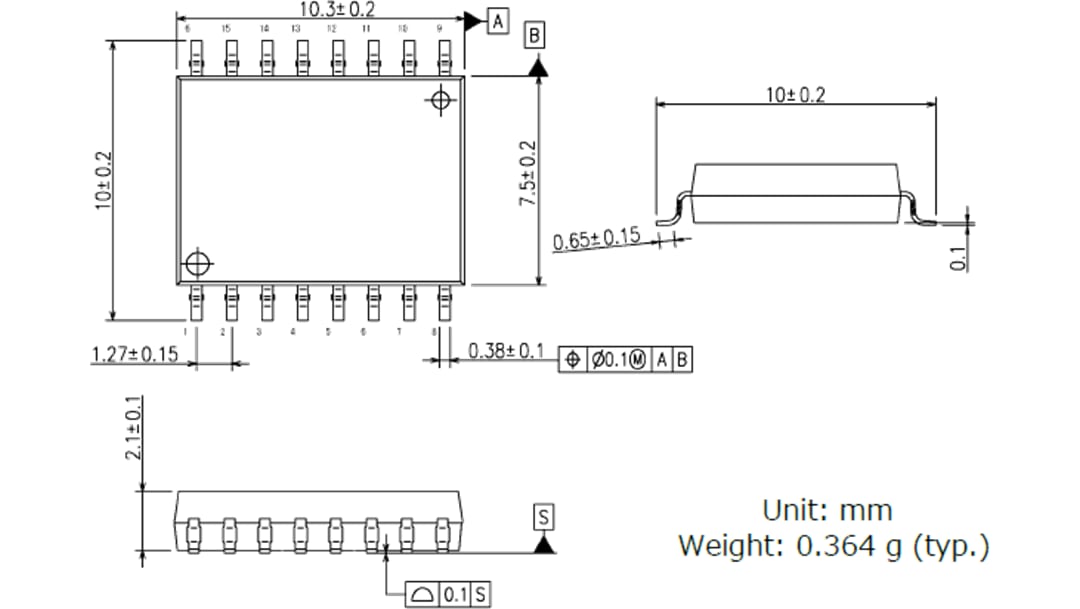

PACKAGE OUTLINE

Mechanical Drawing - Toshiba TLP5212 IGBT Gate Drive Photocoupler
