ACPL-K73A-560E High Speed Optocouplers With Base Output 5000Vrms 2 Channel 8-SO Stretched

Ask Lasest Price
Brand Name :	Broadcom Limited
Model Number :	ACPL-K73A-560E
Price :	Negotiable
Supply Ability :	1000000pcs

Add to Cart

Product Details
Company Profile

ACPL-K73A-560E High Speed Optocouplers With Base Output 5000Vrms 2 Channel 8-SO Stretched

ACPL-K73A-560E Optoisolator Darlington with Base Output 5000Vrms 2 Channel 8-SO Stretched

Broadcom ACPL-K70A/K73A High-Speed Optocouplers

Broadcom ACPL-K70A/K73A High-Speed Optocouplers are high gain series couplers that use LED and an integrated high gain photodetector. This provides an extremely high current transfer ratio between input and output. These optocouplers come with separate pins for the photodiode and output stage that result in LVTTL-compatible saturation voltages and high-speed operation. The VCC and VO terminals tied together to achieve conventional photodarlington operation. These ACPL-K70A/K73A optocouplers feature low input current, high current gain, low power consumption, and base access allows gain bandwidth adjustment.

The ACPL-K70A/K73A optocouplers are surface-mount devices that are packaged in an industry-standard stretched SOIC-8 footprint. This stretched SOIC-8 does not require through holes in a PCB. The ACPL-K70A/K73A high-speed optocouplers are ideal for use in LVTTL/LVCMOS or other low-power applications.

FEATURES

Low power consumption
High current transfer ratio
Stretched SO-8 package

LVTTL/LVCMOS compatible output
Base access allows gain bandwidth adjustment

SPECIFICATIONS

3.3V to 18V supply voltage range VCC
0.04mA to 12mA forward input current range IF(ON)
-40°C to 105°C operating temperature range

0.8V forward input voltage VF(OFF)
25mA output current IO(AVG)

SAFETY

UL1577 recognized: 5000 Vrms/1min
CSA approval

IEC 60747-5-5 approval for reinforced insulation

APPLICATIONS

EIA RS-232C/low input current line receiver
Low power systems:
- Ground isolation

Line voltage status indicator
Low input power dissipation

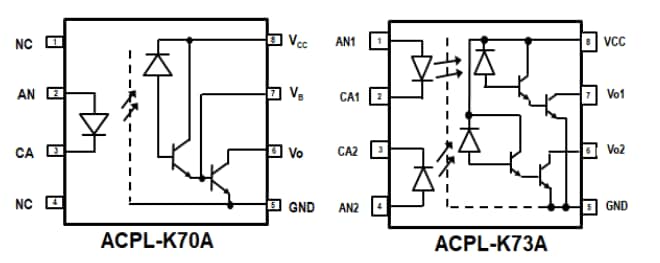

FUNCTIONAL BLOCK DIAGRAM

Block Diagram - Broadcom ACPL-K70A/K73A High-Speed Optocouplers

PACKAGE OUTLINE DRAWING

Mechanical Drawing - Broadcom ACPL-K70A/K73A High-Speed Optocouplers
