QPA1009 Integrated Circuits ICs 12.7GHz 17W PA PHS 1 Channel

QPA1009 RF Amplifier 10.7-12.7 GHz 17W PA PHS

Qorvo QPA1009 17W Wideband GaN on SiC Power Amplifier

Qorvo QPA1009 17W Wideband GaN on SiC Power Amplifier operates from 10.7GHz to 12.7GHz, delivering 42dBm of saturated output power and 16dB of large signal gain while achieving 33% power-added efficiency. The QPA1009 RF ports have DC blocking capacitors and are matched to 50Ω. The device's RF input port is DC coupled to ground for optimum ESD performance. The QPA1009 is fabricated on a 0.15µm QGaN15 GaN (Gallium Nitride) on SiC (Silicon Carbide) process and is 100% DC and RF tested to ensure compliance with electrical specifications.

The Qorvo QPA1009 17W Wideband GaN on SiC Power Amplifier is available in a 6.0mm x 5.0mm laminate package. The QPA1009 can support a wide range of operating conditions, including continuous wave (CW), making the device well-suited for commercial and military applications.

FEATURES

10.7GHz to 12.7GHz frequency range
43dBm saturated output power (PSAT)
33% power added efficiency (PAE)
16dB power gain
21dB small signal gain

20V drain voltage (VD)
300mA drain current (IDQ)
-40°C to +85°C operating temperature range
6.00mm x 5.00mm x 1.76mm laminate package
Halogen-free, lead-free, and RoHS compliant

APPLICATIONS

Satellite communications
Radar
Point to point communications

BLOCK DIAGRAM

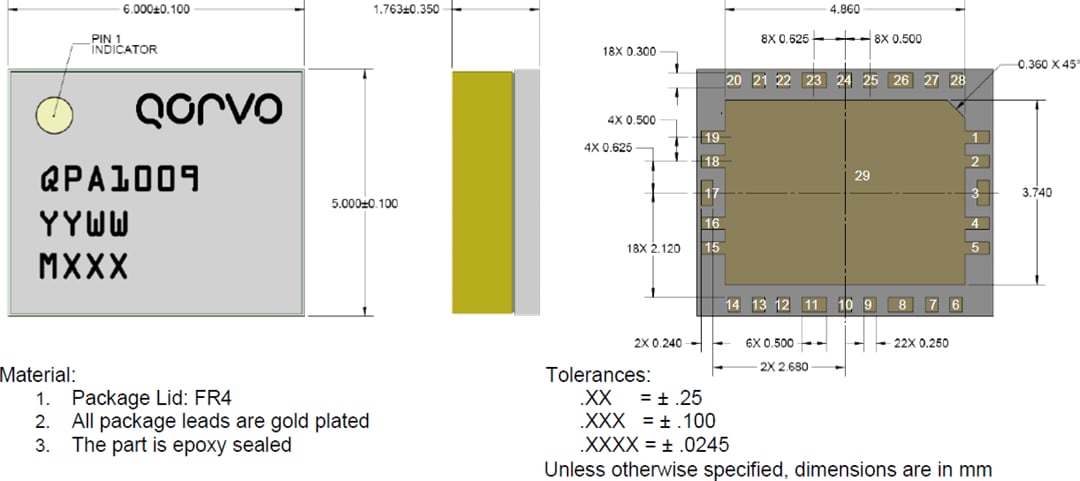

PACKAGE OUTLINE

Mechanical Drawing - Qorvo QPA1009 17W Wideband GaN on SiC Power Amplifier
