BZX38450-C8V2X Zener Diode IC 8.2 V 300 MW Surface Mount SOD-323

Ask Lasest Price
Brand Name :	Nexperia USA Inc.
Model Number :	BZX38450-C8V2X
Price :	Negotiable
Supply Ability :	1000000pcs

Add to Cart

Product Details
Company Profile

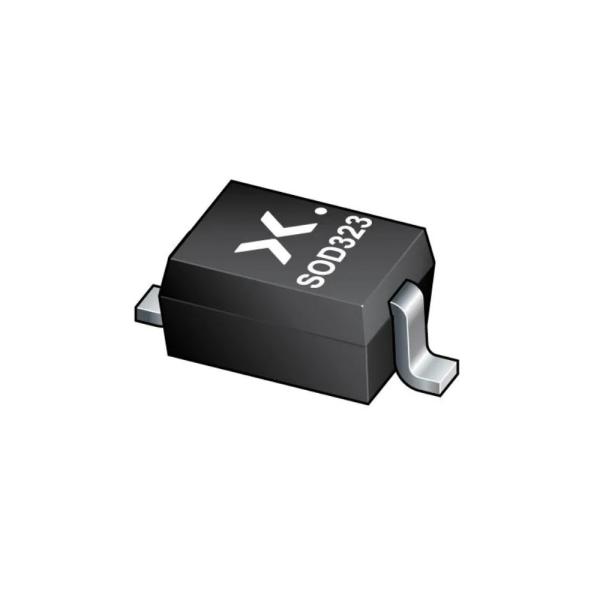

BZX38450-C8V2X Zener Diode IC 8.2 V 300 MW Surface Mount SOD-323

BZX38450-C8V2X Zener Diode 8.2 V 300 mW ±5% Surface Mount SOD-323

experia BZX38450 Low-Current Voltage Regulator Diodes

Nexperia BZX38450 Low-Current Voltage Regulator Diodes are designed to feature ≤300mW total power dissipation and ±5% tolerance. These diodes are ideal for low bias and portable battery-powered applications specified at 50μA low test current. The BZX38450 diodes operate at 0.9V forward voltage (VF), 250mA forward current (IF), -55°C to 150°C ambient temperature range, and -65°C to 150°C storage temperature range. These diodes are available in small SOD323 (SC-76) SMD plastic packages and are used in low-current general regulation functions.

FEATURES

±5% tolerance
SOD323 (SC-76) SMD package

Specified at a low test current (50μA), ideal for low bias and portable battery-powered applications

SPECIFICATIONS

≤300mW total power dissipation
1.8V to 75V operating voltage range
0.9V forward voltage (VF)

250mA forward current (IF)
-55°C to 150°C ambient temperature range
-65°C to 150°C storage temperature range

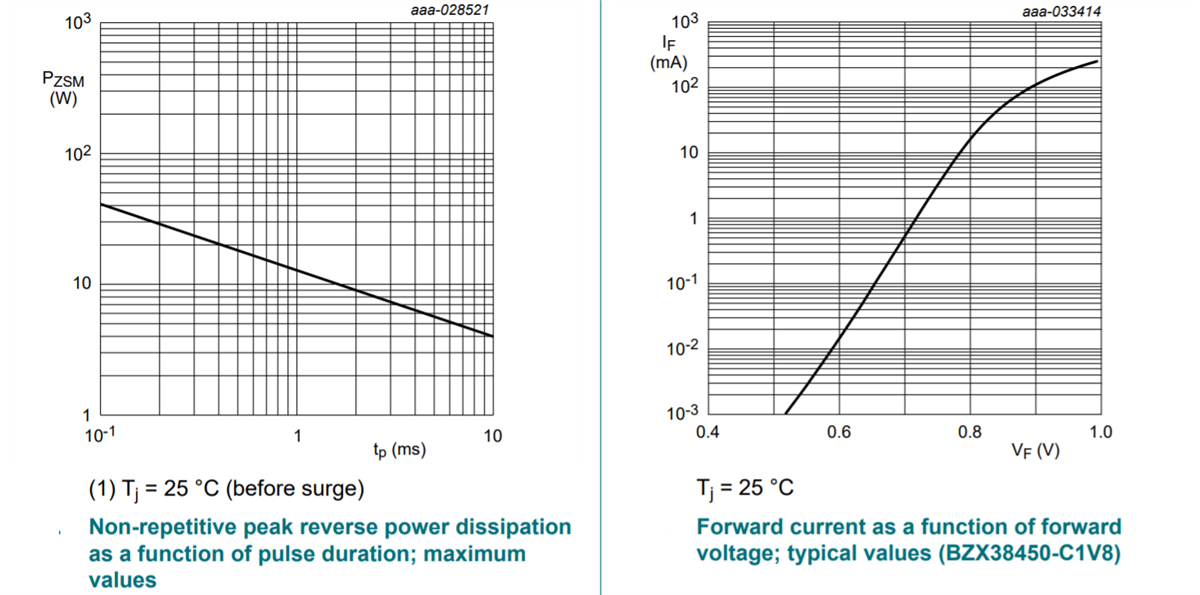

CHARACTERISTICS CURVE

Performance Graph - Nexperia BZX38450 Low-Current Voltage Regulator Diodes

PACKAGE OUTLINE

Mechanical Drawing - Nexperia BZX38450 Low-Current Voltage Regulator Diodes
