B82721S0282A030 Common Mode Chokes 1.47mH 10 KHz 2 Line Mount 2.8A DCR 59mOhm

Ask Lasest Price
Brand Name :	EPCOS - TDK Electronics
Model Number :	B82721S0282A030
Price :	Negotiable
Supply Ability :	1000000pcs

Add to Cart

Product Details
Company Profile

B82721S0282A030 Common Mode Chokes 1.47mH 10 KHz 2 Line Mount 2.8A DCR 59mOhm

B82721S0282A030 1.47 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 2.8A DCR 59mOhm

EPCOS / TDK CMC Series SMD Ring Core Chokes

EPCOS / TDK CMC Series SMD Ring Core Chokes feature a low height and compact design with superior EMI suppression characteristics. These current-compensated ring core double chokes offer a range of approximately 0.4% to 1.2% stray inductance for differential-mode interference suppression. The B82720S0 chokes also offer a 1.8A rated current at +40°C and 0.88mH nominal inductance. The B82721S0 type features 2.7A to 5.6A rated current at +40°C and nominal inductance from 0.22mH to 3mH. The B82722S0 chokes have a 3.25A to 19A rated current at +40°C with 0.16mH to 5.6mH nominal inductance. EPCOS / TDK CMC Series SMD Ring Core Chokes are constructed with sector windings and a ferrite core with epoxy coating. They are RoHS compatible and suitable for reflow soldering. Applications include suppression of common-mode interferences, DC/DC power converters, low voltage, and more.

FEATURES

Common
- Current-compensated ring core double choke
- Ferrite core with epoxy coating and plastic case (UL 94V-0)
- Sector windings
- Low height and compact design
- Suitable for reflow soldering
- RoHS compatible
B82720S0 type
- 1.8A rated current at +40°C
- 0.88mH nominal inductance
- Approximately 0.8% stray inductance for differential-mode interference suppression
- SMD terminals

B82721S0 type
- 2.7A to 5.6A rated current at +40°C
- 0.22mH to 3mH nominal inductance
- Approximately 0.8% to 0.9% stray inductance for differential-mode interference suppression (4.6% for B82721S0322A010)
- Self-leaded SMD terminals
B82722S0 type
- 3.25A to 19A rated current at +40°C
- 0.16mH to 5.6mH nominal inductance
- Approximately 0.4% to 1.2% stray inductance for differential-mode interference suppression
- SMD terminals

APPLICATIONS

Suppression of common-mode interferences
Compact switch-mode

Low voltage
DC/DC power converters

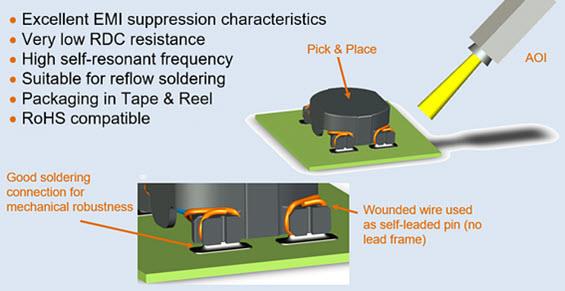

APPLICATION EXAMPLE

EPCOS / TDK CMC Series SMD Ring Core Chokes

COMPARISON CHART

PRODUCT BENEFITS

IMPEDANCE CURVES
