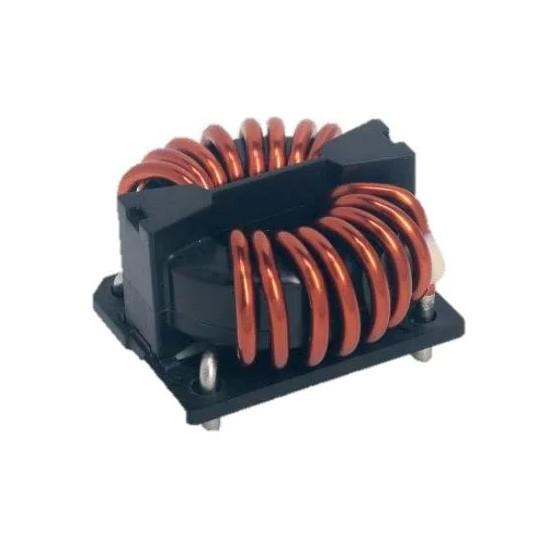

1000 Volts 1.1mH 21A Common Mode Chokes SCF29XV-210-2R1A010JH

Ask Lasest Price
Brand Name :	KEMET
Model Number :	SCF29XV-210-2R1A010JH
Price :	Negotiable
Supply Ability :	1000000pcs

Add to Cart

Product Details
Company Profile

1000 Volts 1.1mH 21A Common Mode Chokes SCF29XV-210-2R1A010JH

SCF29XV-210-2R1A010JH Common Mode Chokes / Filters 1000 Volts 1.1mH 21A ESR=2.33mOhms AECQ2

KEMET Electronics High Permeability Ferrite AEC-Q200 Toroidal Coils

KEMET Electronics High Permeability Ferrite AEC-Q200 Toroidal Coils feature a wide variety of characteristics for automotive and harsh environment industrial applications. These common-mode chokes offer a high rated voltage of up to 1000V AC/DC, UL 94V-0 flame-retardant base and cap, and AEC-Q200 qualification. The SCR-XV coils are designed with proprietary high permeability ferrite S15H cores, the SCT-XV series utilizes ferrite 7HT cores with proprietary high heat resistance and high Bs characteristics, and SCF-XV coils feature a nanocrystalline metal core and are useful in various noise countermeasure fields.

KEMET High Permeability Ferrite AEC-Q200 Toroidal Coils are useful in various noise countermeasure fields. Applications include onboard chargers for EVs/PHEVs, wireless charging systems with 85kHz, medium power drives for steering, air conditioning, and mild hybrid 48V systems, as well as high voltage automotive and harsh environment industrial EMI filtering.

FEATURES

Proprietary high-permeability S15H ferrite material (SCR-XV)
Proprietary high-temperature 7HT ferrite material (SCT-XV)
Nanocrystalline metal core (SCF-XV)
High rated voltage, up to 1000V AC/DC
High permeability
High impedance

-40°C to +120°C operating temperature range (SCR-XV)
-40°C to +150°C operating temperature range (SCT-XV and SCF-XV)
UL 94V-0 flame-retardant base and cap
AEC-Q200 qualified

APPLICATIONS

Onboard chargers for EVs/PHEVs
Medium power drives for steering, air conditioning, and mild hybrid 48V systems

Wireless charging systems with 85kHz
High voltage automotive and harsh environment industrial EMI filtering

SERIES DETAILS

KEMET Electronics High Permeability Ferrite AEC-Q200 Toroidal Coils
