1210 200Ohm Common Mode Chokes 100mA 5VDC MCZ1210AH201CPTA0G

Ask Lasest Price
Brand Name :	TDK
Model Number :	MCZ1210AH201CPTA0G
Price :	Negotiable
Supply Ability :	1000000pcs

Add to Cart

Product Details
Company Profile

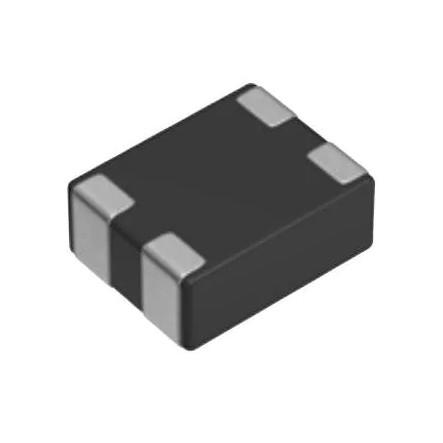

1210 200Ohm Common Mode Chokes 100mA 5VDC MCZ1210AH201CPTA0G

MCZ1210AH201CPTA0G Common Mode Chokes / Filters 1210 200Ohm 25% 100mA 5VDC

TDK MCZ1210AH Common Mode Filters

TDK MCZ1210AH Common Mode Filters are designed for use in high-speed differential signal line applications. These compact multilayer common mode filters operate in a wide frequency range for differential mode transmission ensuring common mode impedance. The MCZ1210AH filter's common mode noise is suppressed with nearly no effect on the high-speed differential transmission line. Typical applications include electronic equipment with a high-speed interface, mobile phones, PCs, portable game machines, DVD players, TVs, and mobile audio.

FEATURES

Compact multilayer common mode filter
EMC suppression is achieved through a widened frequency range
Common mode noise is suppressed

-40°C to 85°C operating temperature
-40°C to 85°C storage temperature after the circuit board is mounted

APPLICATIONS

Electronic equipment with a high-speed interface:
- USB2.0
- Low-Voltage Differential Signaling (LVDS)
- Mobile High-Definition Link (MHL)
Mobile phones
PCs

Portable game machines
TVs
DVD players
DVCs
Mobile audio

MCZ1210AH DIMENSIONS

Mechanical Drawing - TDK MCZ1210AH Common Mode Filters

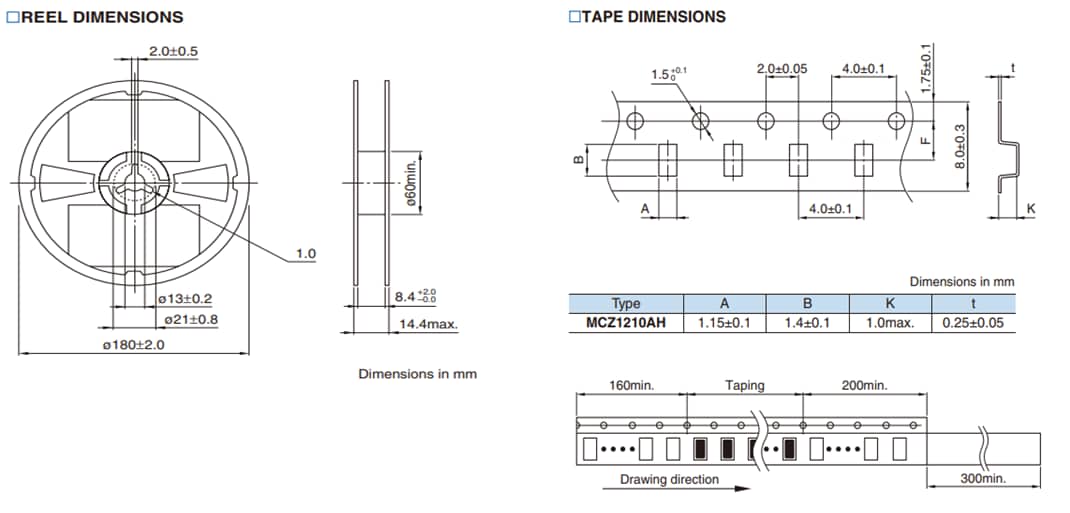

TAPE & REEL DIMENSIONS

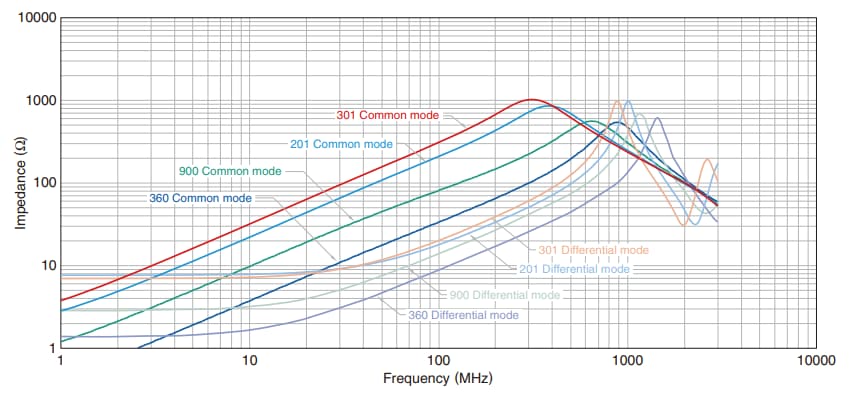

IMPEDANCE VS FREQUENCY CHARACTERISTICS

Performance Graph - TDK MCZ1210AH Common Mode Filters
