PTZTFTE252.0B Zener Diode IC 2.12 V 1 W Surface Mount PMDS For Automotive

Ask Lasest Price
Brand Name :	ROHM Semiconductor
Model Number :	PTZTFTE252.0B
Price :	Negotiable
Supply Ability :	1000000pcs

Add to Cart

Product Details
Company Profile

PTZTFTE252.0B Zener Diode IC 2.12 V 1 W Surface Mount PMDS For Automotive

PTZTFTE252.0B Zener Diode 2.12 V 1 W ±5.66% Surface Mount PMDS

ROHM Semiconductor PTZTF Automotive Zener Diodes

ROHM Semiconductor PTZTF Automotive Zener Diodes are AEC-Q101 qualified Zener Diodes optimized for automotive voltage regulation. The PTZTF Zener Diodes feature a 2.0V to 40.0V Zener voltage range and a 10mA to 40mA Zener current range. These devices exhibit a 4Ω to 25Ω Zener impedance range and 1000mW power dissipation.

The ROHM Semiconductor PTZTF Automotive Zener Diodes are available in a compact DO-214AC (SMA) surface-mount package.

FEATURES

AEC-Q101 qualified
2.0V to 40.0V Zener voltage range (VZ)
10mA to 40mA Zener current range (IZ)
10μA to 200μA reverse current range (IR)
4Ω to 25Ω Zener impedance range (ZZ(Ω))

1000mW power dissipation (PD)
150°C junction temperature (Tj)
-55°C to +150°C storage temperature (Tstg)
Silicon epitaxial planar structure
DO-214AC (SMT) package

APPLICATIONS

Voltage regulation
Automotive rectification

INNER CIRCUIT

Schematic - ROHM Semiconductor PTZTF Automotive Zener Diodes

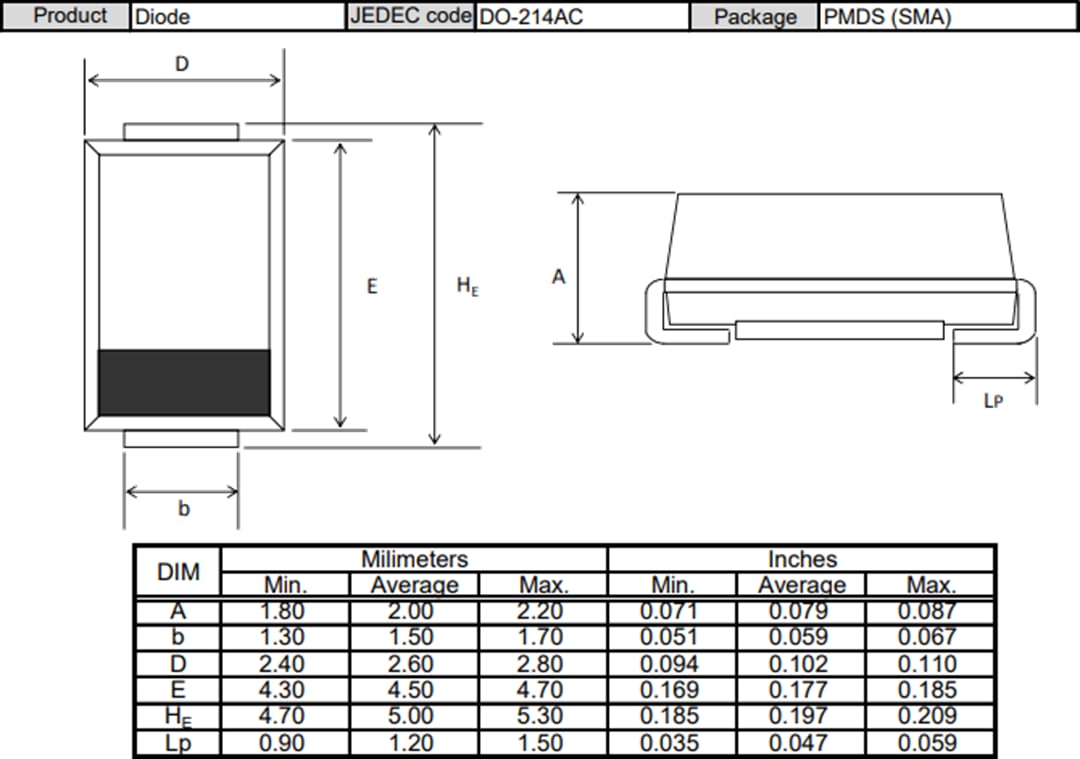

PACKAGE OUTLINE

Mechanical Drawing - ROHM Semiconductor PTZTF Automotive Zener Diodes
